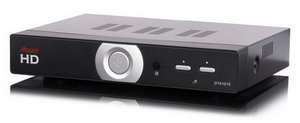

AccessHD DTA1010D
Digital TV Converter Box

Replacement Remote Control for this Converter Box



AccessHD DTA1010D User Manual

These compact, low cost converters enable analog TVs and “digital ready” TVs to receive off-air UHF and VHF digital television signals. Simply attach your antenna to the back of the converter and it will convert your local broadcast stations’ standard, enhanced, and high-definition digital signals into an analog TV signal format. This converter connects to your television using your choice of composite video (RCA jack) or 75 ohm RF cable.




Standard Features:

  • Smart Antenna Interface
  • Channel 3/4 selectable
  • Infrared remote control
  • V-chip parental control (version 2.0)
  • AC3 Dolby Digital Stereo down mixing
  • MPEG-1 layers 1, 2, 3 (MP3)
  • MPEG-2 MP@ML, MP@HL
  • Black enclosure
  • 3’ 75 ohm RF cable with F-type connectors
  • Sleep timer
  • ETL, FCC and NTIA approvals

    • Connectivity:

  • Single RF input (IEC 169-24 F-Type)
  • Single RF (F-Type) output
  • Composite video (RCA yellow connector)
  • Analog stereo RCA audio output (RCA white and red connectors)
  • RS 232 data port for upgrades (model 1010)

    • Memory:

  • 2 MB Flash
  • 16 MB DRAM

    • Power Supply:

  • Internal high efficiency switch mode power supply
  • 110V, 60HZ
  • Standby and sleep mode power saving feature.

    • Converter Dimensions:

  • 8.6”W x 6.4”D x 1.6”H
  • Weight: 2.1 lbs

    • Manufacturers specifications are subject to change without notice.
