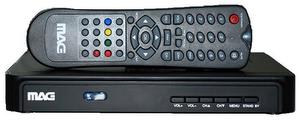

MAG CCB7707 DTV Converter Box
User Manual
Key Features:
MPEG-1/2 & ATSC Compliant
Standard Definition Display
Easy-To-Use Graphical User Interface
Supports NTSC Output on either CH 3/4 RF Output Switchable
EIA 608 and EIA 708 Closed Caption
V-Chip supported
Remote Control provided
16:9/4:3 display switch with Pan & Scan, letterbox
Technical Specifications
Digital TV Reception:
ATSC A/74 compliant
Tuning Range: CH2 ~ CH69
Bandwidth: 6MHz
Tuner level: -83 dBm to -5 dBm
System Resources:
CPU: STi7707 200 MHz
RAM memory: 32 MB DDR SDRAM
Flash memory: 2 MB NOR Flash
General Data:
AC input voltage: 90-240V, 50/60Hz
Power consumption: <2W in standby
Dimensions (W x D x H): 230x188x29 mm
FCC, UL & CSA compliance
General Software:
Software powered by Zentek
Advanced Graphical User Interface
Electronic Program Guide
Automatic Channel Installation
Closed Caption
Emergency Alert System (EAS)
Parental Controls (V-Chip)
Last Channel Memory, Favorite Channels Programmable
I/O Interfaces:
6 navigation keys
IR Sensor
Dual colors LED indicators
Female 75 ohm F Type connector with CH 3/4 switch
Female 75 ohm F Type connector for VHF/UHF RF input
CVBS RCA video output
Audio R/L RCA stereo output
Video Decoding:
NTSC Analog Video Output in 4:3 and 16:9 Format with Letter-Box and Pan & Scan
MPEG-2 MP@ML and MP@HL compliant
Standard-Definition Video and Graphics Systems
Audio Decoding:
MPEG-2 Multi-Channel Audio Decoder
Analog L/R Audio Output
Accessories:
User Manual
Quick Start Guide (QSG)
Remote Control
Batteries
RF Cable
Manufacturers specifications are subject to change without notice.
