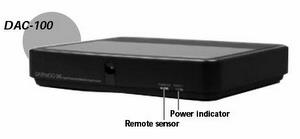

Daewoo DAC-100 DTV Converter Box
User Manual
Television System: Fully ATSC Compliant
Channel Coverage: Terrestrial - 2 ~ 69
ATSC RF input: RF IN (1)
RF Output: 3 / 4 Channel
Video Output: 480i Composite
Audio Output: Analog Audio (L/ R)
Dimension (DAC-100): 180 x 150 x 30 (mm3)
Weight (DAC-100): ~290 g
Power Requirements: AC 120V, 60Hz
Power Consumption: In standby - 1.6W, Operating - 8W
Accessories: RF Cable, Remote Control, and Batteries
Manufacturers specifications are subject to change without notice.
