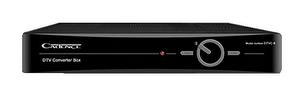

Cadence DTVC-9
DTV Converter Box
Features:
Smart Antenna
Fully ATSC / MPEG -2 HD compliant
Receives HD ATSC Terrestrial broadcast
Channels 2-69
Decodes all 18 ATSC DTV standard formats
256 colors on screen display (OSD) supported
NTSC/SECAM supported
Electronic Program Guide (EPG)
Favorite channel edit
Teletext output through VBI and OSD
Multi-language OSD (English, French, Spanish)
Multi-language audio supported
Multi-language Subtitle output supported
Picture in graphics (PIG) supported
EIA 608 Closed Caption
Parent control (V-chip)
Specifications:
Tuner ATSC
Bandwidth: 6M
Input Frequency: 57 ~ 803MHz
Input Impedance: 75O
Input Level: -79 ~ -10dBm
Signal Input: IEC Female (RF IN), IEC Male (RF OUT)
Channel Decoding:
Standard: ATSC A/53
8/16 VSB and MMDS 2/4/8/16 VSB
Standard :ATSC
Demultiplexer:
Standard: ISO/IEC 13818-1
Input Max. Bit Stream Rate: 120Mbps (Serial)/15MBps (Parallel)
Video Decoding:
Standard: ISO/IEC 13818-2, MPEG-2 MP@ML
Aspect Ratio: 4:3, 16:9
Video Resolution: 720×480 (NTSC)
Memory:
Flash Memory: 2 MB
SDRAM Memory: 32 MB
Audio Decoding:
Standard: ISO/IEC 13818-3
Output Mode: Mono, Dual-channel, Stereo
Sampling Frequency: 32, 44.1, 48 KHz
Decoding: MPEG-1 & MPEG-2 layer I and II
Audio Output Impedance: Low
Audio / Video Output:
Video De-emphasis: CCIR REC.405-1, 625LINES
Video Bandwidth: 5.5MHz
Video Output Impedance: 75 ohm
Video Output Level: 1.0Vp-p
Audio Output Frequency: 20Hz ~ 20 KHz
Front Panel:
IR Receiver: 38 KHz
Power on/off
Channel Up
Channel Down
Rear Panel:
RF out 75 Ohm F-Connector (NTSC Channel 3 or 4)
CVBS (RCA Connector)
Stereo L/R (RCA Connector)
Smart Antenna
Remote Control Unit:
Category: IR (Carrier 38 KHz)
Battery: 2 - 1.5V
Power:
Input Voltage: AC100 ~ 240V, 50/60Hz
Power Consumption: 18W max
Dimensions:
Size: 295mm(W) x 217mm(D) x 54mm(H)
Weight: 1.8Kg
Manufacturers specifications are subject to change without notice.
